Product Overview
Purchase by the Square Foot of your total project:
• Project Packages available with & without waterproofing
• If your project lands between available size options, please purchase the next size up

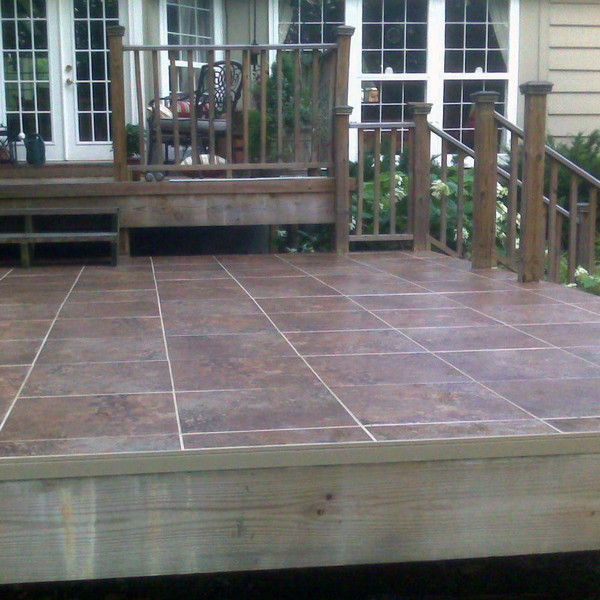

TI-ProBoard® is a sustainable, durable and virtually maintenance-free underlayment for exterior deck porcelain tile installations. It is a composite panel that is unaffected by expansion, contraction or exterior weather conditions and acts as a structural replacement for a plywood substrate.
• No need for deck boards or plywood substrate
• Tongue & Groove Edges = Fast & Easy to Install!
• 12" Wide Panels
• 3/8" tall channel ridges
• Superior freeze/thaw performance!
• Installs with our 1 1/2” Panhead TI-ProScrews
• Low expansion/contraction coefficient
• Commercial floor rating
Our waterproofing packages ship with the following:
• StrataFlex Peel & Stick Waterproof Membrane (3’x50’/150 sqft rolls)
• NS97 Primer (Gallon Jug)
• Seam Tape 6”x50’ (2 -25’ Rolls)
• SubSeal Liquid Sub Seal (Gallon Jug)
• PFI – Interior Flashing Corners (25 per container)
• PFO – Exterior Flashing Corners (25 per container)
StrataFlex Waterproofing Membrane incorporates a 2" overlap guide on one side of the sheet for waterproofing. The 2" flood coated lap allows an adhesive-to-adhesive cohesive bond between subsequent sheets of membrane. Once the cohesive bond occurs, it turns into a monolithic or single-ply membrane across the entire surface being waterproofed.
• 2” double stick lap joint creates a water tight seal
• Protects against reflective cracking and delamination
• Provides up to 3/8” crack isolation protection
• Suitable for interior and exterior use
• Safely covers asbestos flooring and provides an effective barrier against radon and mold
• Eliminates need to cut tile to meet control/cold joints
• No need to remove old floors or recess new ones
• Tile can be installed the same day as membrane
• Serves as a waterproof/vapor barrier
• Works with radiant-heated floors and tile warming systems
• SUITABLE SUBSTRATES: Exterior grade plywood, concrete,
mortar beds, cement backer board, cement terrazzo, ceramic
tile, dimensional stone and concrete masonry.
• Fabric top coating:
~Makes an excellent bonding surface for latex modified thin-set mortars
~Allows for immediate installation of tile or stone NO CURE TIME!
NS97 Primer is designed for exterior applications of NAC membranes. This solvent-based primer is non-flammable and may be used in below-grade, on-grade and above-grade applications.
• For exterior applications
• Provides MVT protection 10#/1000SF/24hours
• Solvent-based, non-flammable
• Pre-mixed formula requires no thinning
SubSeal Liquid is a one-part, ready-to-use elastomeric waterproofing membrane designed for interior and exterior applications for surfaces that require waterproof protection. SubSeal also functions as a sealant and moisture barrier and may be applied on horizontal and vertical surfaces. SubSeal bonds to a variety of substrates, metal drains, PVC, ABS fixtures, stainless steel, concrete backer board and more.
• Suitable for interior and exterior use
• Thin, low-profile membrane with superior flexibility when cured
• Quick drying; flood test in less than 24 hours
• Crack protection for up to 1/8” of lateral movement
• Same day flooring installation
• Clean Air GOLD certified
NAC Pre-Formed Inside (PFI) & Pre-Formed Outside (PFO) corners are a lightweight, breathable fabric providing an extra layer of waterproof protection in corner areas.
• Allows for substrate movement in walls and floors while assuring waterproof integrity
• Breathable fabric material allows for SubSeal® liquid to soak into the fibers, assuring a strong & waterproof corner
• Low profile, durable construction for easy and fast installation
• Suitable for interior/exterior use and thin or thick-bed applications.
• Tile can be installed same day if no flood testing is required
• Can be cut to size with razor blade if necessary
